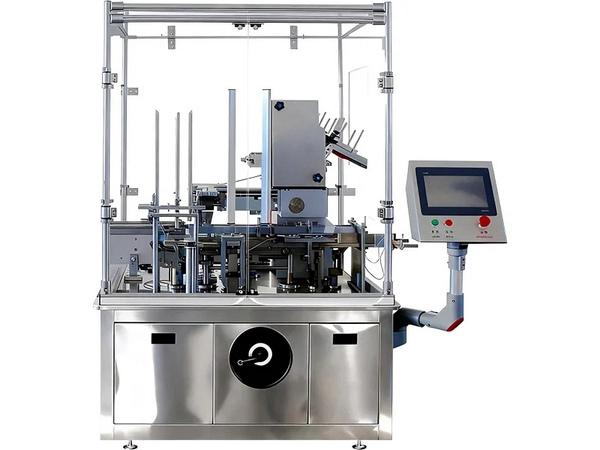

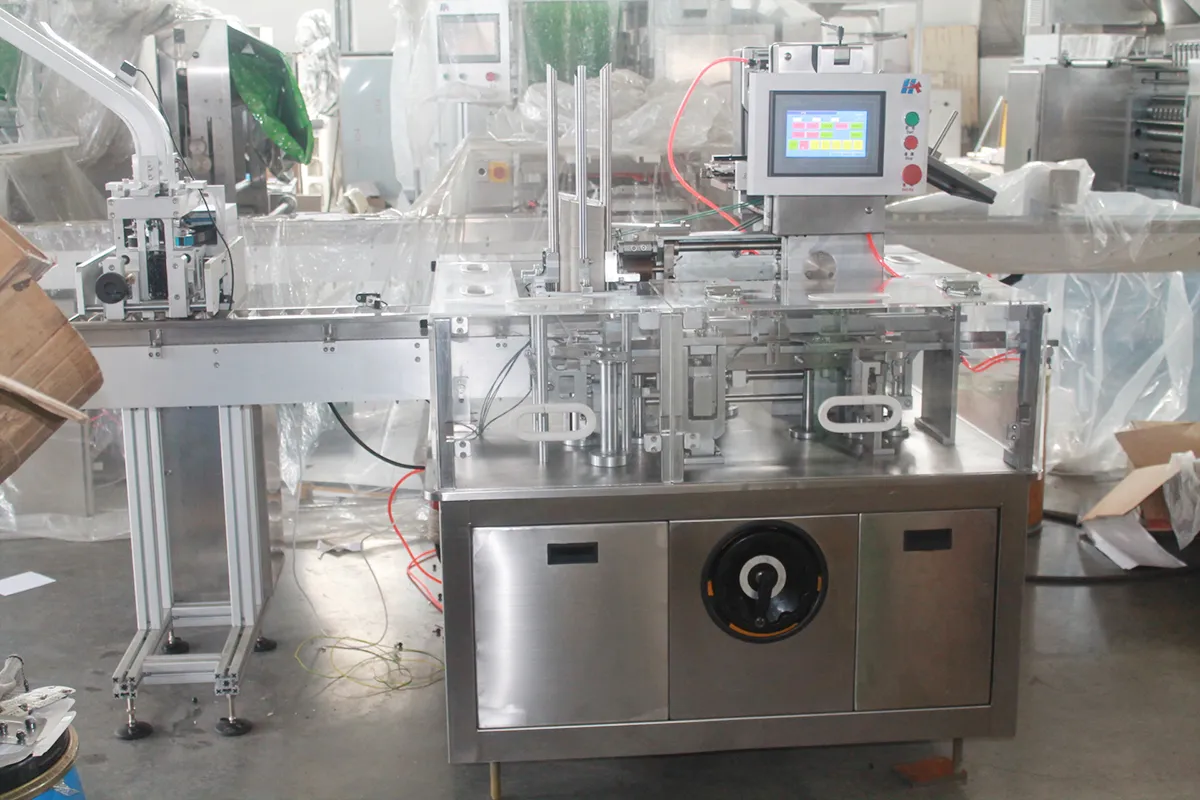

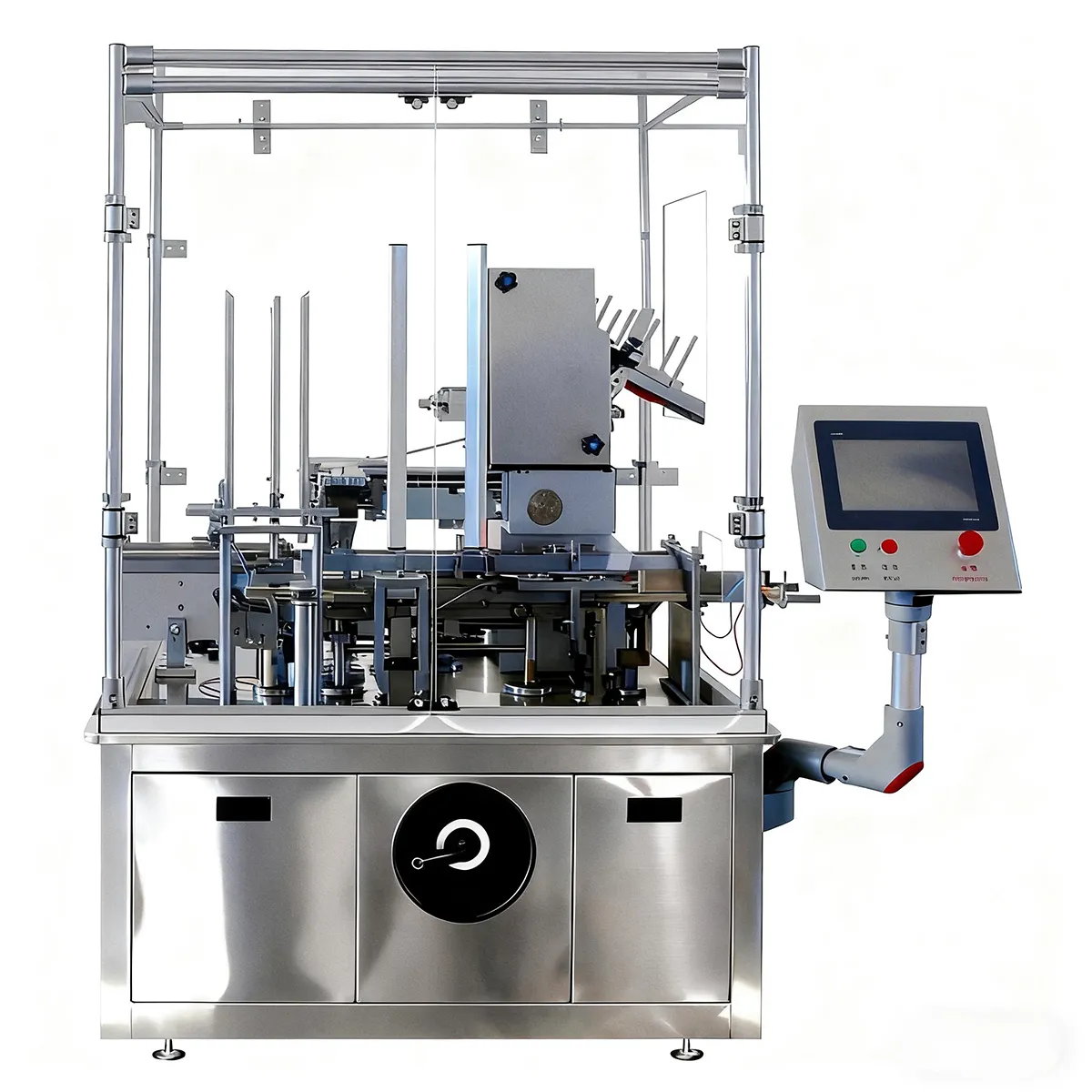

ZH100/150 Intermittent Motion Vertical Cartoner
Automatic cartoning machine for automatic carton erecting, vertical loading, leaflet insertion and carton closing

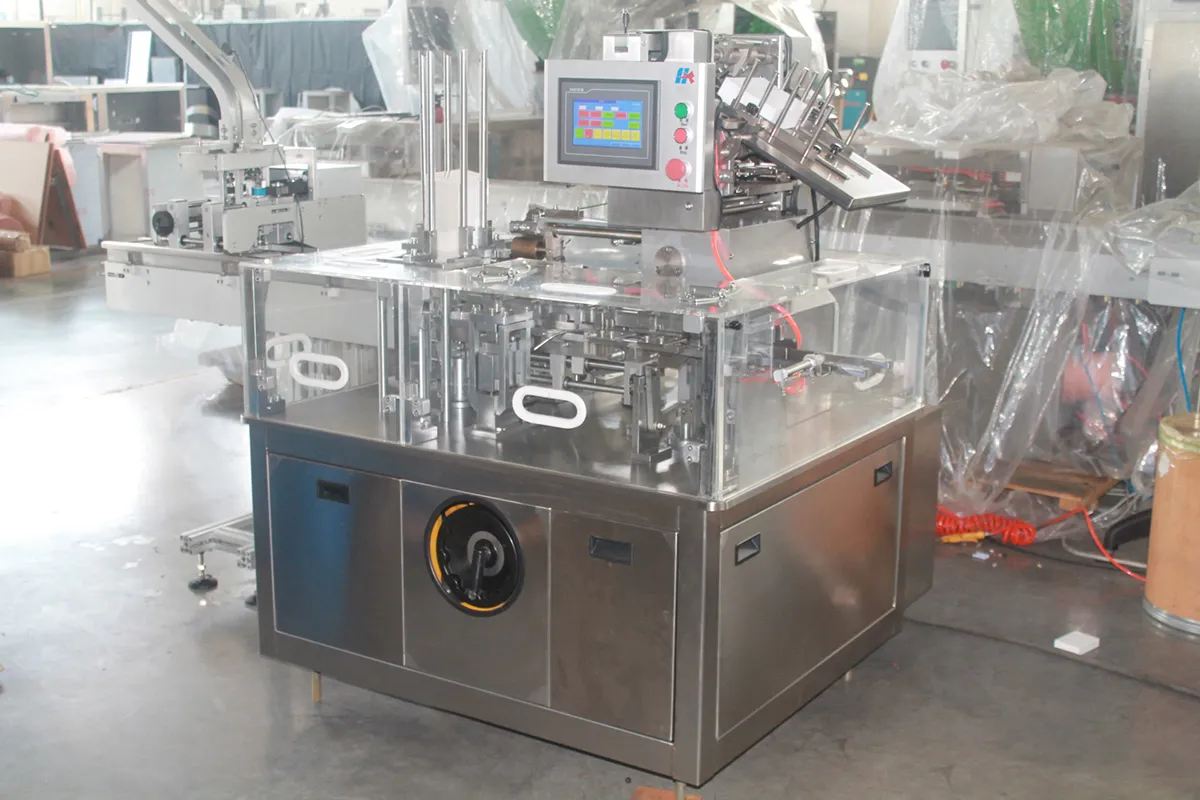

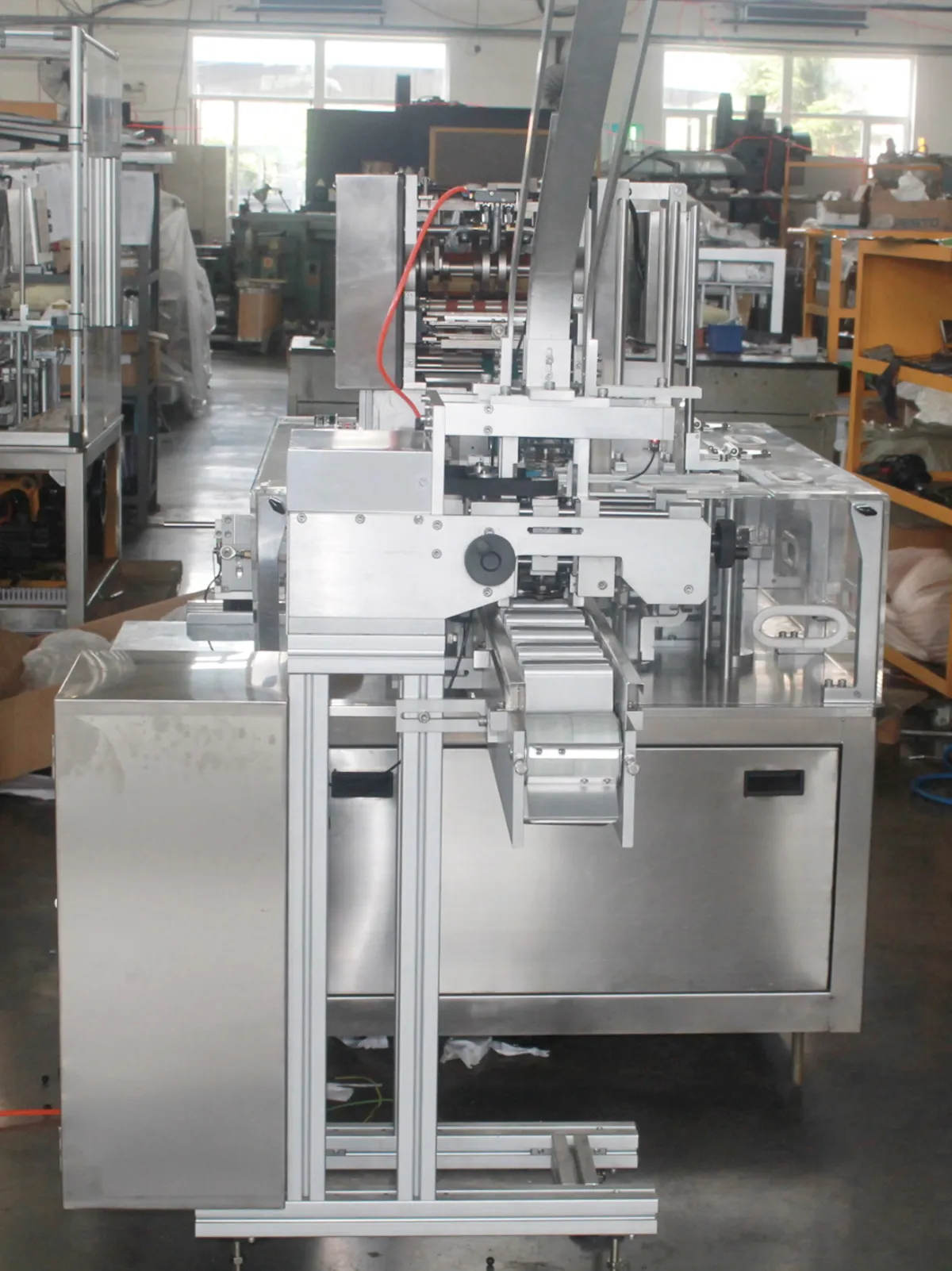

The equipment is a vertical intermittent motion cartoner. It can sequentially complete processes such as product feeding, material transfer, leaflet folding, leaflet insertion, carton erection, product insertion, and carton sealing. The entire cartoning process is fully enclosed.
It is suitable for the automatic cartoning of pharmaceuticals, strip packs, food products, daily chemical products, small hardware items, and similar materials. The main machine adopts a full-servo drive, offering broad applicability.
Automatic cartoning for pharmaceuticals, food, daily chemical products, small hardware items, and related products.
- Variable-frequency speed control with a PLC fully automatic control system; multiple carton specifications can be adjusted within the specified range on the same machine.
- Easy to understand interface, automatically displaying cartoning speed, output count, operating parameters, fault causes, and operation guidance.
- Synchronous completion of leaflet folding (up to four folds), product insertion, and coding; production date and batch number can be printed on cartons, with an optional serial number printing function.
- Equipped with automatic alarm, stop, and rejection functions.
- Can be linked with other equipment to form an integrated production line.
| Model | |
|
|---|---|---|
| Production rate | ≤100 cartons/min | ≤150 cartons/min |
| Power supply | 380 V, 50 Hz | 380 V, 50 Hz |
| Installed power | 1.3 kW (including vacuum pump motor) | 1.3 kW (including vacuum pump motor) |
| Carton size (L*W*H) | (65–125) × (45–90) × (12–55) mm | (65–125) × (45–90) × (12–55) mm |
| Leaflet size (L*W*H) | (110–160) × (90–250) mm | (110–160) × (90–250) mm |
| Compressed air pressure | 0.5–0.7 Mpa | 0.5–0.7 MPa |
| Noise level | 75 dB(A) | 75 dB(A) |
| Dimensions (L*W*H) | 1085 × 1165 × 1475 mm | 1085 × 1165 × 1475 mm |
| Weight | 1200 kg | 1200 kg |

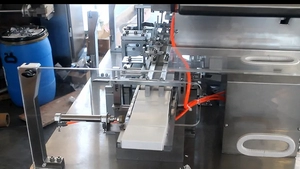

Qinghai Tibetan Hospital selected the ZH150 cartoning machine to match its large-scale production needs. The production line requires frequent changeovers for multiple product types. With convenient parameter adjustment, the ZH150 enables fast switching between different carton specifications, ensuring production continuity and stability.
