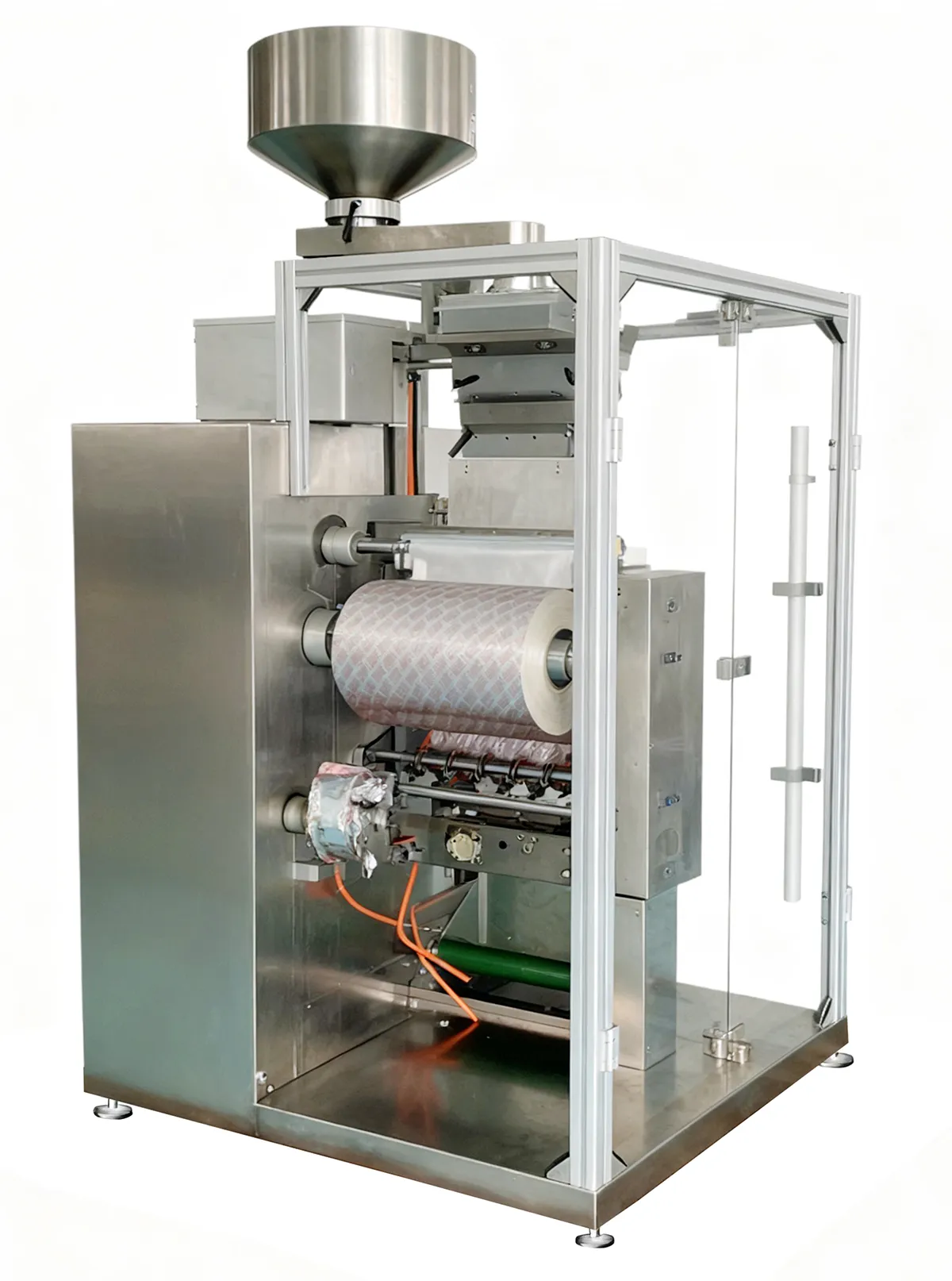

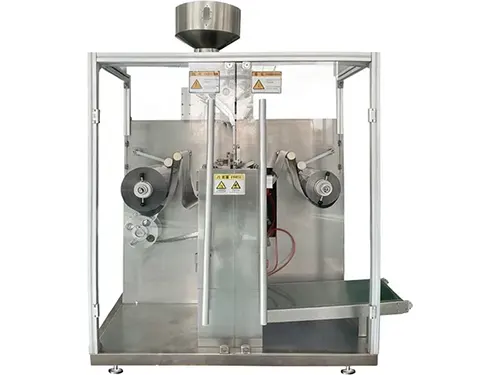

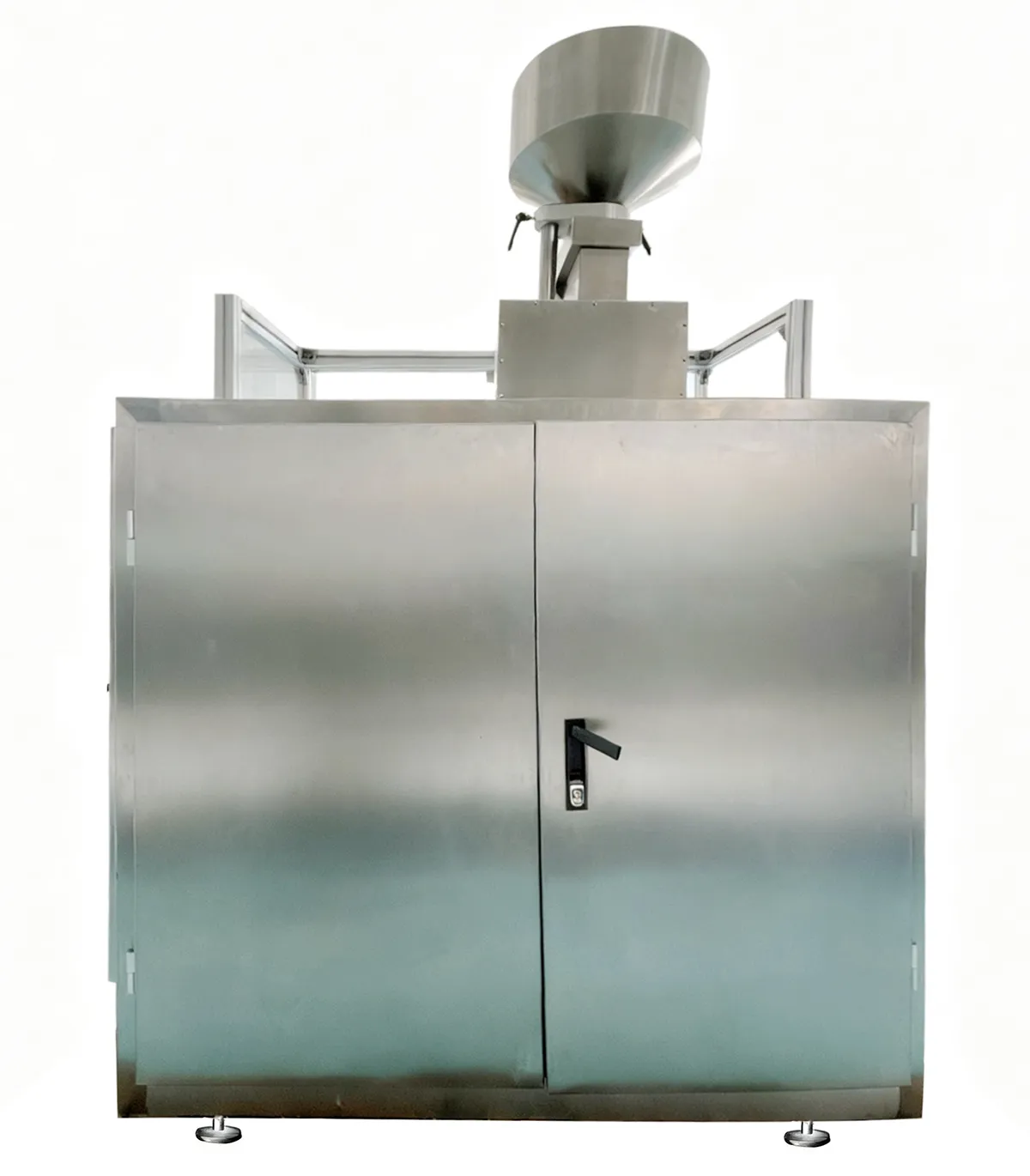

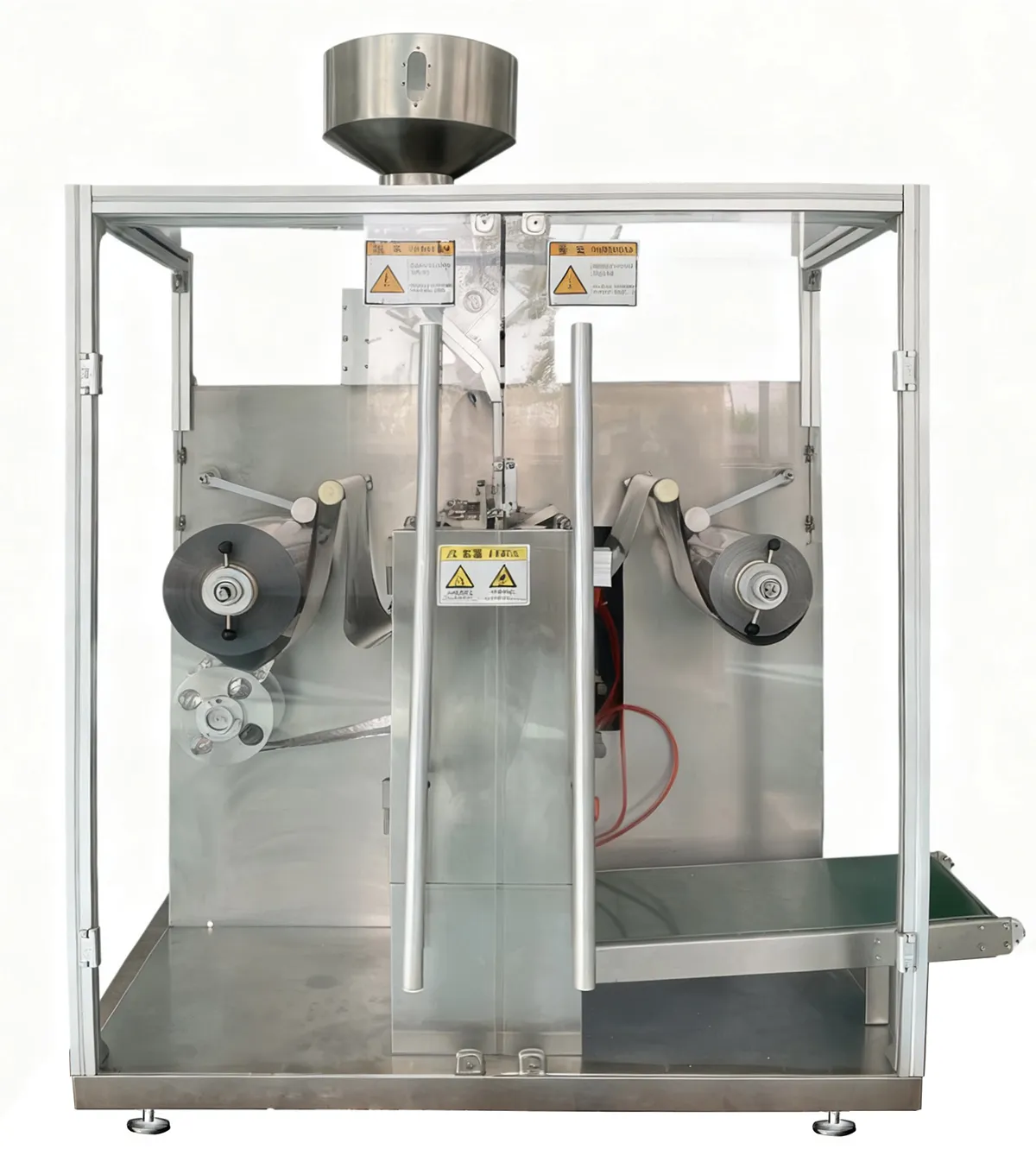

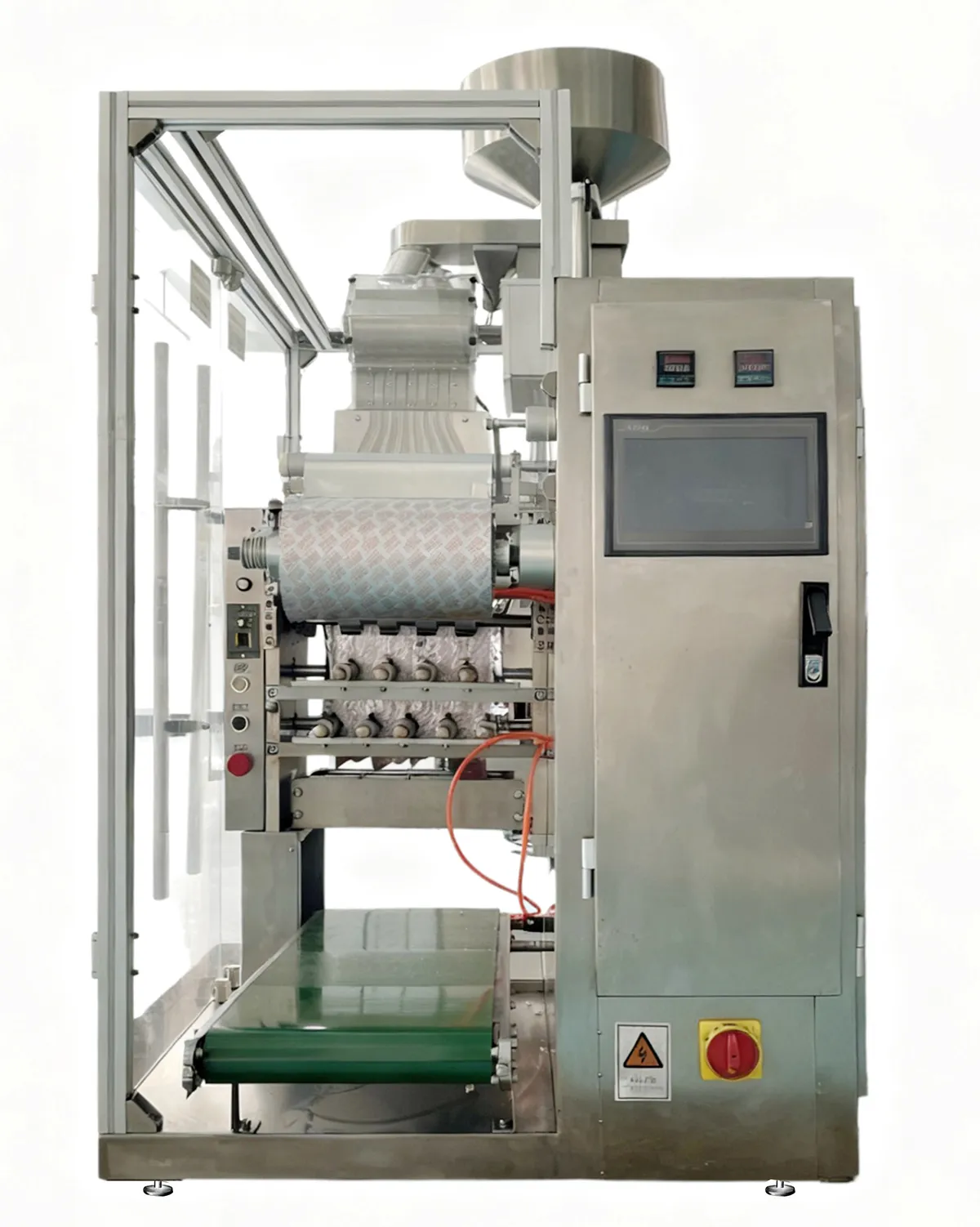

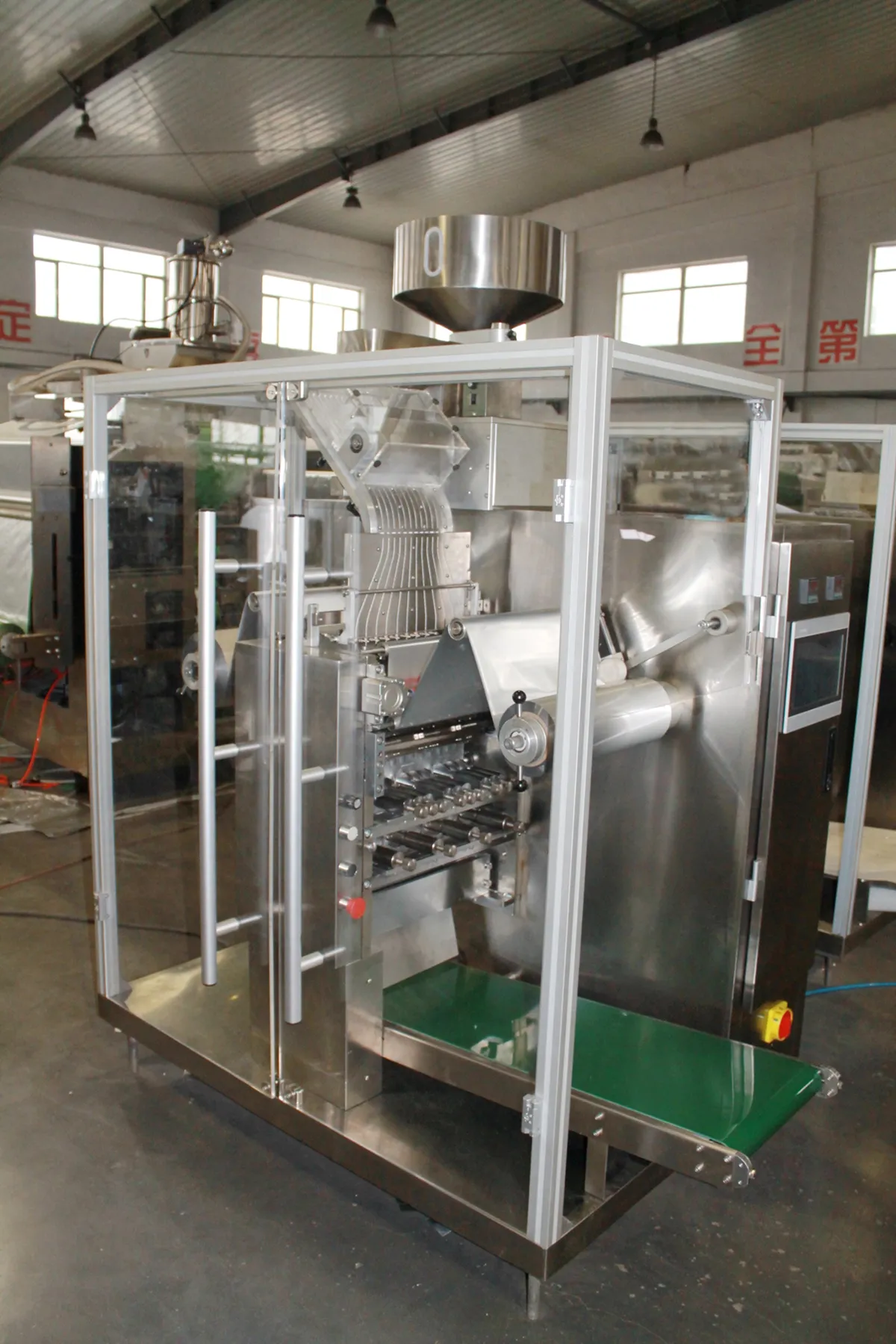

DXDK350 Alu-Alu Strip Packaging Machine

Automatic high-barrier strip packaging machine for light-sensitive and moisture-sensitive pharmaceuticals in soft Alu-Alu foil strips

Cutting frequency: 20–60 cuts/min (adjustable)
Packing speed: 120–180 packs/min

The Alu-Alu strip packaging machine is suitable for composite films, plastic films, paper films, and other packaging materials. It can package various shapes and sizes of capsules, tablets, and other solid products.

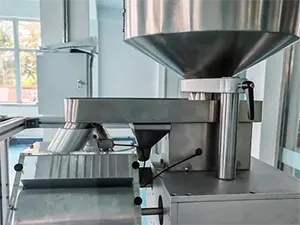

The machine features variable frequency speed control with adjustable stroke, vibration feeding mechanism, and photoelectric monitoring. It automatically performs feeding, heat sealing, cutting lines, batch numbering, and trimming. It is suitable for tablets, capsules, and electronic components, providing reliable sealing and light protection.

Request a Quote

Applications

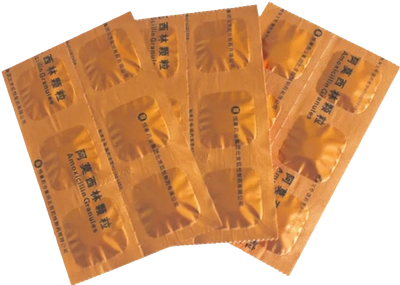

Packaging of capsules and tablets in pharmaceutical, food, and cosmetic industries, providing light protection and moisture resistance.

Features

Four-side sealing with simultaneous multi-strip packaging, improving efficiency.
PLC control enables a high degree of automation.
Stepless variable frequency drive ensures stable performance and easy operation.
Photoelectric tracking and floating alignment maintain accurate double-sided pattern positioning.

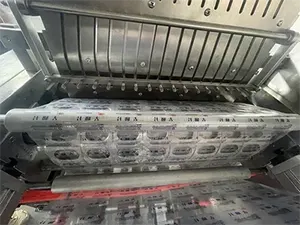

Easy mold roller replacement; single heating tube ensures uniform heating and tight sealing.

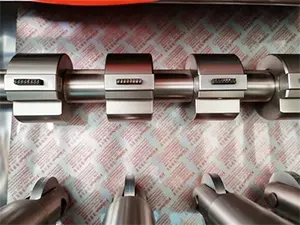

Automatic batch numbering and cross/longitudinal tearing lines functions.
Modern appearance with large color touchscreen and bilingual interface (Chinese/English) for intuitive operation.

Technical Specifications

Cutting frequency	20–60 cuts/min (adjustable)
Packing speed	120–180 packs/min
Packing material	Plastic-aluminum composite film
Bag length	30–200 mm
Bag width	40–300 mm
Installed power	5.74 kW
Voltage	380 V, 50 Hz
Dimensions (LWH)	1500×1070×2100 mm
Weight	1000 kg

Production Process

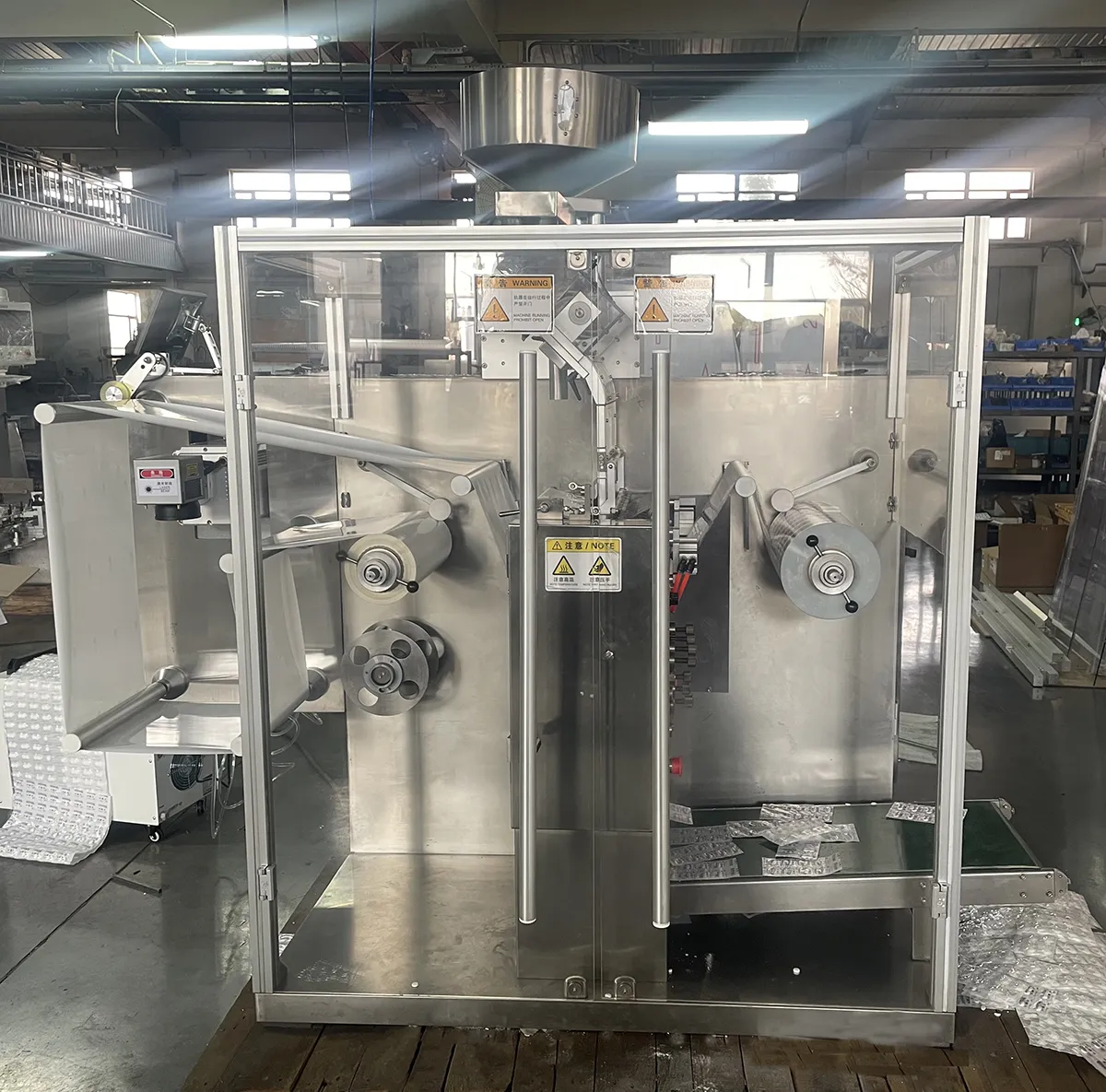

Customer Case

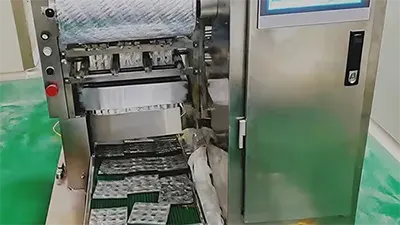

Shou Rushong implemented the DXDK350 strip packaging machine to meet strict requirements for light protection, sealing, production efficiency, and compliance. The precision heat-sealing system ensures each individual blister is tightly sealed with no leakage, effectively protecting photosensitive and easily oxidized medicines.

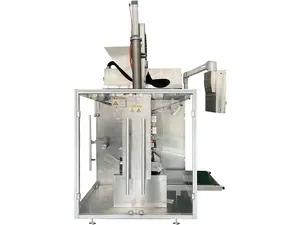

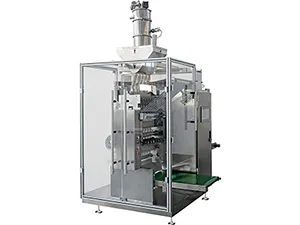

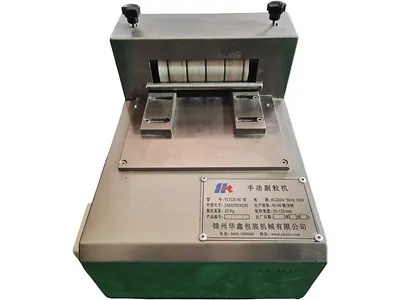

Pharmaceutical Packaging Equipment & Integrated Lines

What to do if the packaging film tears or deforms during feeding?

Adjust the tension settings on the unwinding and rewinding units, reducing tension as needed. Check and adjust the pressure on the feed rollers to ensure even pressure without crushing the film. Inspect the film roll for joints, uneven thickness, or quality issues.

How is strip packaging machine used in the pharmaceutical industry?

The strip packaging machine is mainly used for light-sensitive or easily oxidized drugs. The heat-sealed blister ensures each individual unit has high light-blocking and airtight performance, effectively protecting the stability of the drug and extending shelf life.

Is a strip packaging machine suitable for pharmaceutical packaging that requires strong light and moisture protection?

Yes. The strip packaging machine uses a precision heat-sealing system to ensure each blister is tightly sealed, preventing light or oxygen exposure during the product’s shelf life. It fully meets pharmaceutical standards for light protection and airtightness, and is suitable for capsules, tablets, and various shaped solid dosage forms.
