DXDK950Q, Full-Servo 4-Side Seal Sachet Packaging Machine for Granule & Liquid

Vertical form fill seal machine for 4-side seal flat sachets

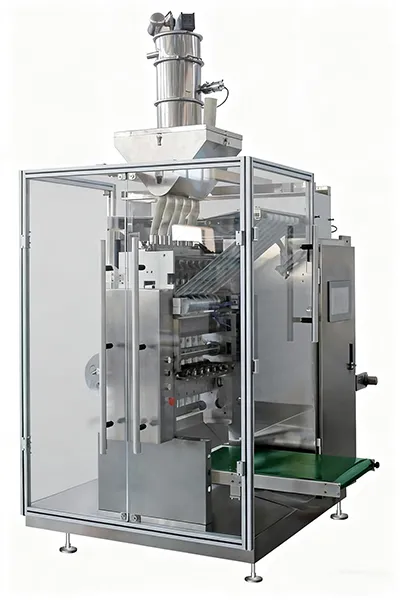

DXDK950Q (for Granule & Liquid, Full-Servo)

Max. packaging speed: up to 400 packs/min
Suitable for packaging granules, pills, and liquids using laminated films with four-side sealing

The sachet packaging machine can sequentially complete automatic film unwinding, slitting, registration, longitudinal sealing, transverse sealing, product filling, batch coding, horizontal tear line, vertical tear line, easy-tear notch forming, longitudinal cutting, transverse cutting, finished product conveying, and waste collection. The entire packaging process is fully enclosed. It is suitable for packaging granules, capsules, and liquid formulations.

The equipment adopts a full-servo configuration, with all stations driven by servo motors. Parameter adjustments are completed via the touch screen, improving control accuracy while simplifying operation, reducing maintenance requirements, and extending machine service life.

Request a Quote

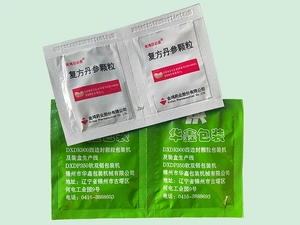

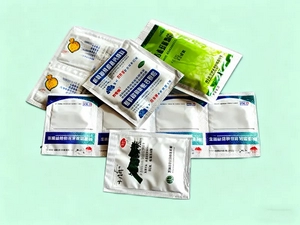

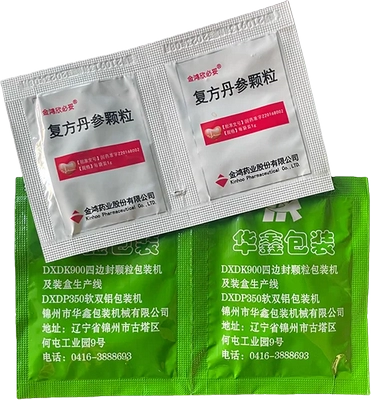

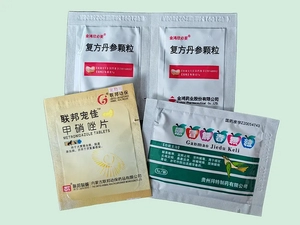

Packaging Samples

Features

Four-side sealing with simultaneous multi-lane sachet packaging
Full-servo control for reliable performance, easy operation, and high efficiency
Photoelectric registration tracking ensures accurate alignment of double-sided printed patterns
Filling, longitudinal and transverse sealing, batch coding, tear lines, and cutting are adjustable via the HMI
Stepless bag length adjustment without mold change when bag length varies

Technical Specifications

Film thickness	0.05–0.1 mm
Cutting frequency	20–60 cuts/min (adjustable)
Packing dose	Granules: 2–20 g/sachet Liquids and semi-liquids: 5–40 ml/sachet
Bag length	50–120 mm
Bag width	65–120 mm
Max. film width	950 mm
Max. packaging speed	400 packs/min
Max. number of vertical lanes	10 sachets
Air consumption	3.2 L/hour
Installed power	12.1 kW
Power supply	380 V, 50 Hz
Dimensions (LWH)	1500 × 1540 × 2200 mm
Weight	1200 kg

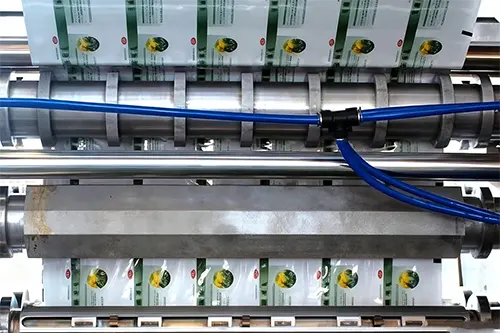

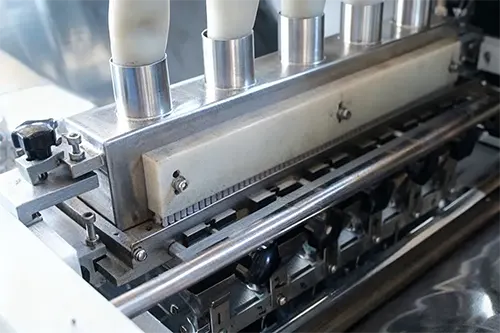

Production Process

Customer Case

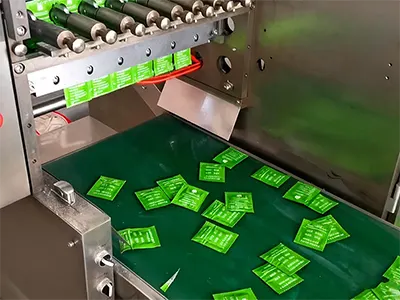

On-site operation of DXDK950Q sachet packaging machine demonstrates its integrated automatic feeding, dosing, and sealing functions. Equipped with a high-precision screw dosing system, the machine ensures stable and accurate filling throughout continuous production.

Pharmaceutical Packaging Equipment & Integrated Lines

What are the requirements for packaging films?

The sachet packaging machine is compatible with commonly used laminated films (such as PET/PE). Film rolls must be evenly wound without telescoping or eccentricity, as these may cause film feeding issues. Clear and consistent registration marks are essential for accurate pattern positioning. Recommended film thickness is within the designed range (e.g. 0.05–0.1 mm). For special materials, prior consultation is recommended.

What packaging equipment is suitable for 4-side seal sachets for light-sensitive pharmaceutical powders?

The 4-side seal sachet packaging machines are suitable for strip-style light-shielding packaging and are recommended for powders requiring high light protection and sealing performance.

What is the difference between full-servo and dual-servo packaging machines?

Full-servo packaging machines use servo motors at all stations, offering higher precision and speed, making them suitable for high-standard production environments. Dual-servo machines use servo drive for longitudinal sealing and support automatic double-sided registration tracking, making them more suitable for medium-output applications. Equipment selection can be optimized based on specific production requirements.
