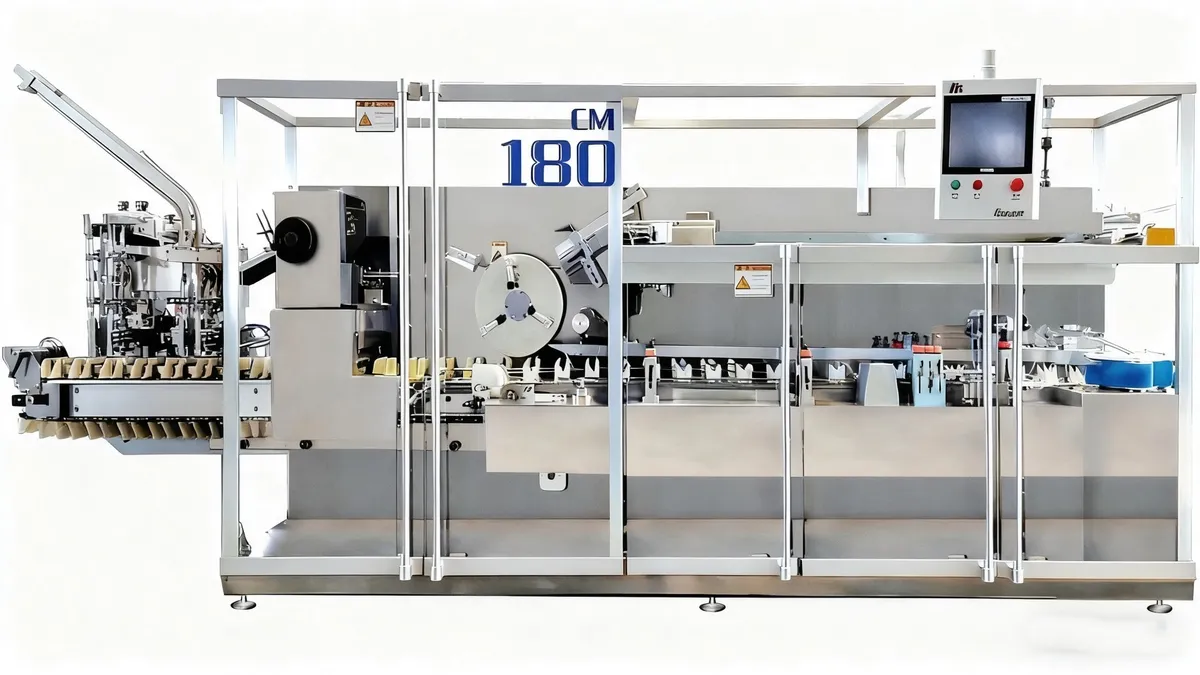

CM180/260/300 Continuous Motion Horizontal Cartoner
Automatic cartoning machine for automatic leaflet folding, leaflet insertion, carton erecting, loading and closing
-

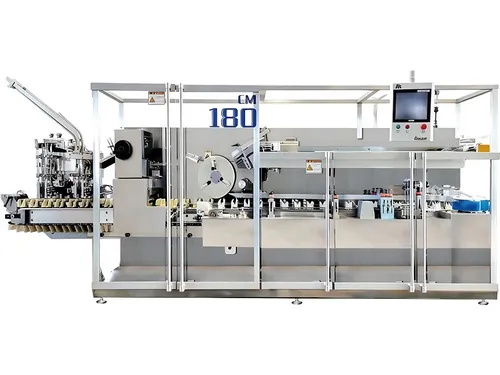

CM180 -

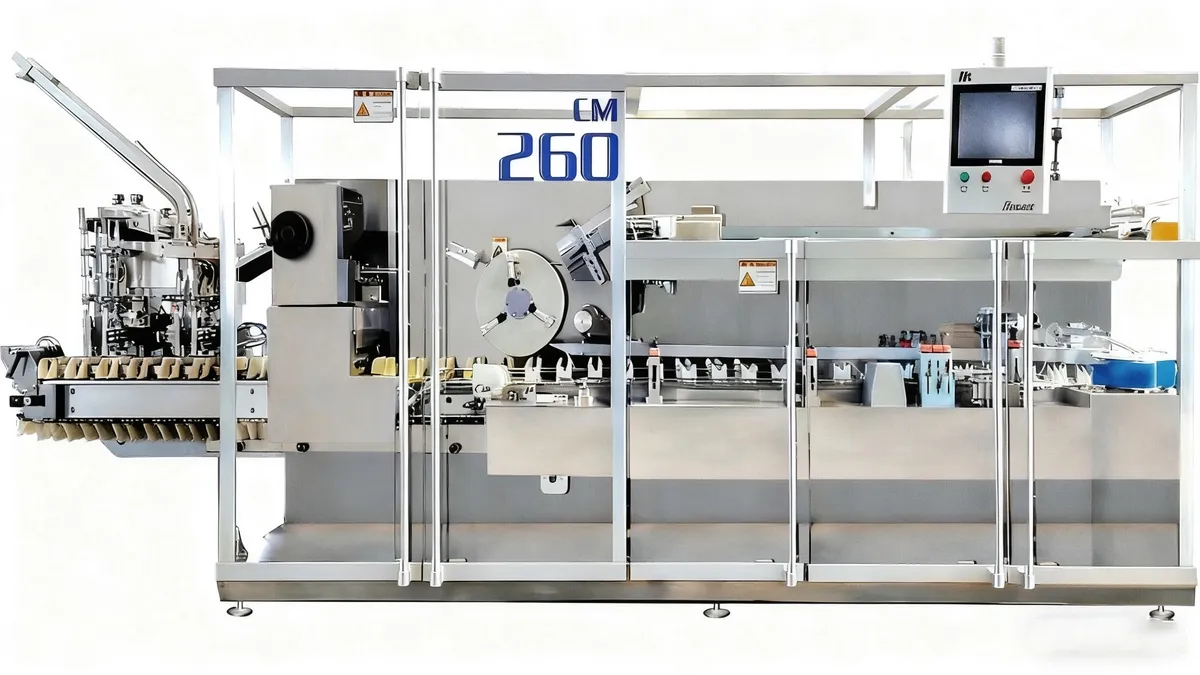

CM260 -

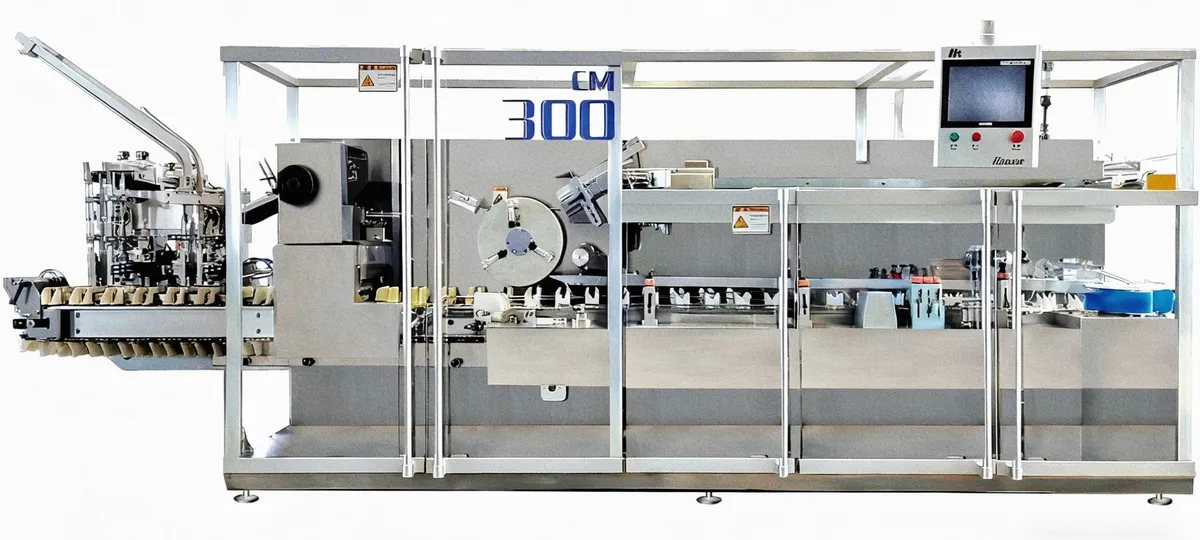

CM300

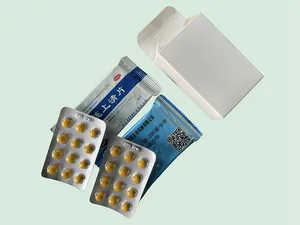

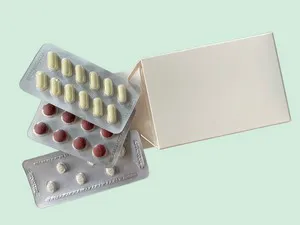

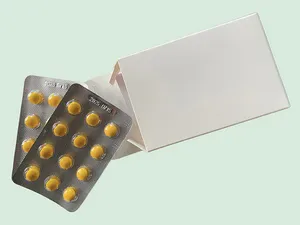

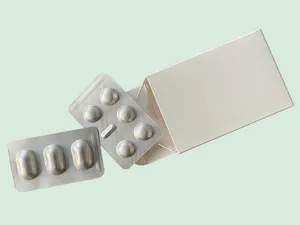

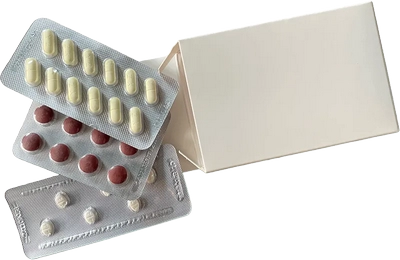

The continuous motion horizontal cartoner features a horizontal design with continuous motion drive, ensuring stable operation and a cartoning speed of up to 300 cartons/min. It is suitable for packaging blister packs, bottles, and similar products in the pharmaceutical, food, cosmetics, and daily chemical industries.
The cartoner can sequentially perform product feeding, infeed conveying, leaflet folding, leaflet insertion, carton erecting, carton feeding, and carton sealing. The entire process is fully enclosed. The main unit is fully servo-driven, offering wide application versatility.
- Automatically completes leaflet folding, carton forming and opening, product insertion, batch code printing, and carton sealing; a hot-melt glue system can be added for hot-melt sealing.
- PLC-controlled system with photoelectric monitoring of each station. In case of abnormal operation, the machine stops automatically and displays the fault cause for quick troubleshooting.
- Equipped with intelligent inspection devices that prevent leaflet insertion and carton feeding when no product is present, allowing seamless integration with upstream equipment. Defective products (missing blister or leaflet) detected during inspection are automatically rejected at the discharge, ensuring consistent product quality.
- Can operate as a standalone unit or be linked with blister packaging machines and other equipment to form a complete production line.
- Packaging formats can be changed according to user requirements, with simple adjustment and commissioning. Suitable for large-volume single-product runs while also accommodating multiple specifications.
| Model | |||
|---|---|---|---|
| Production rate | ≤180 cartons/min | ≤260 cartons/min | ≤300 cartons/min |
| Power supply | 380 V, 50 Hz | 380 V, 50 Hz | 380 V, 50 Hz |
| Installed power | 8.8 kW | 8.8 kW | 8.8 kW |
| Compressed air pressure | 0.5–0.7 MPa | 0.5–0.7 MPa | 0.5–0.7 MPa |
| Noise level | 75 dB(A) | 75 dB(A) | 75 dB(A) |
| Dimensions (L*W*H) | 5360 × 1700 × 1800 mm | 5360 × 1700 × 1800 mm | 5360 × 1700 × 1800 mm |
| Packaging dimensions (L*W*H) | 5855 × 2100 × 2090 mm | 5855 × 2100 × 2090 mm | 5855 × 2100 × 2090 mm |
| Weight | 4000 kg (incl. 500 kg external packaging) | 4000 kg (incl. 500 kg external packaging) | 4000 kg (incl. 500 kg external packaging) |
-
Carton pick-up station -

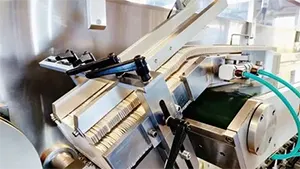

Carton magazine station -

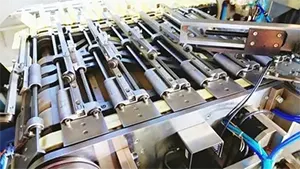

Pusher station

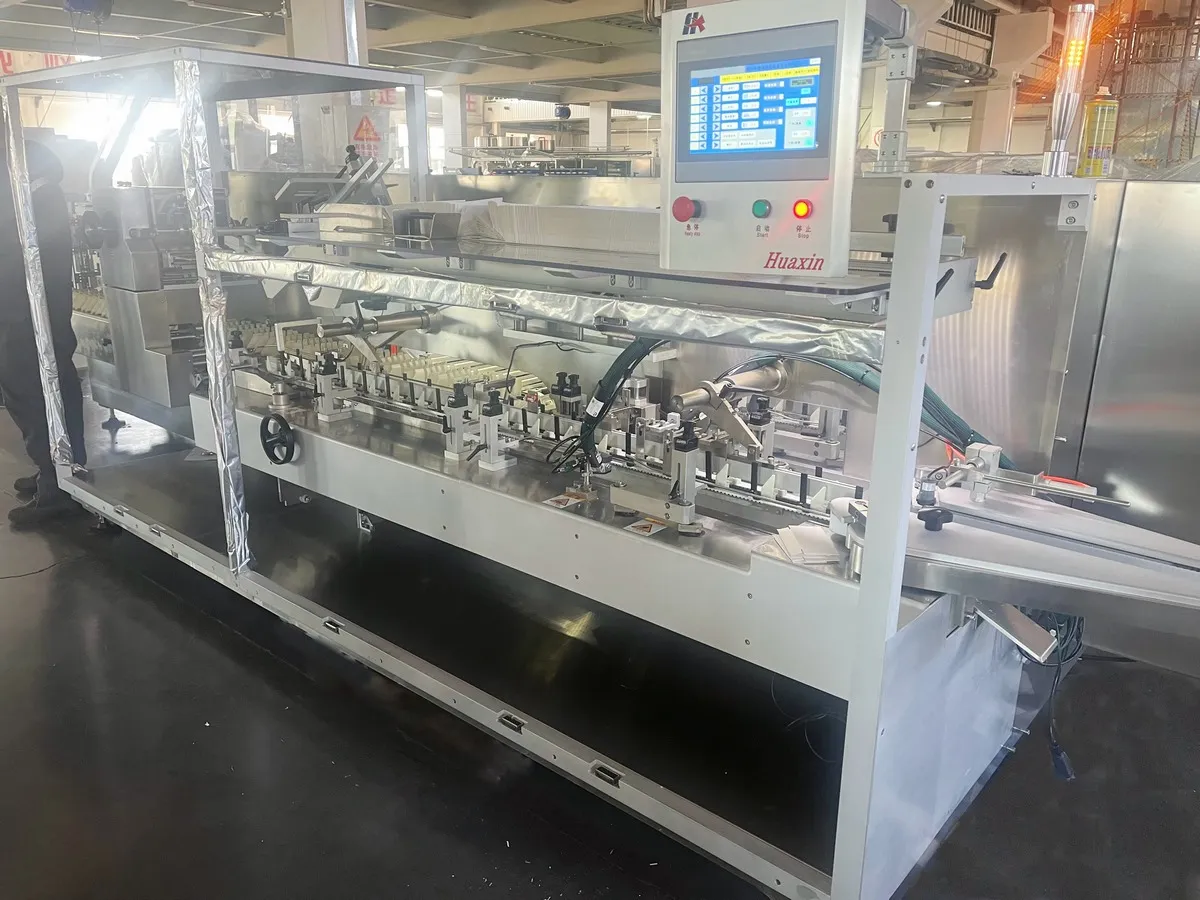

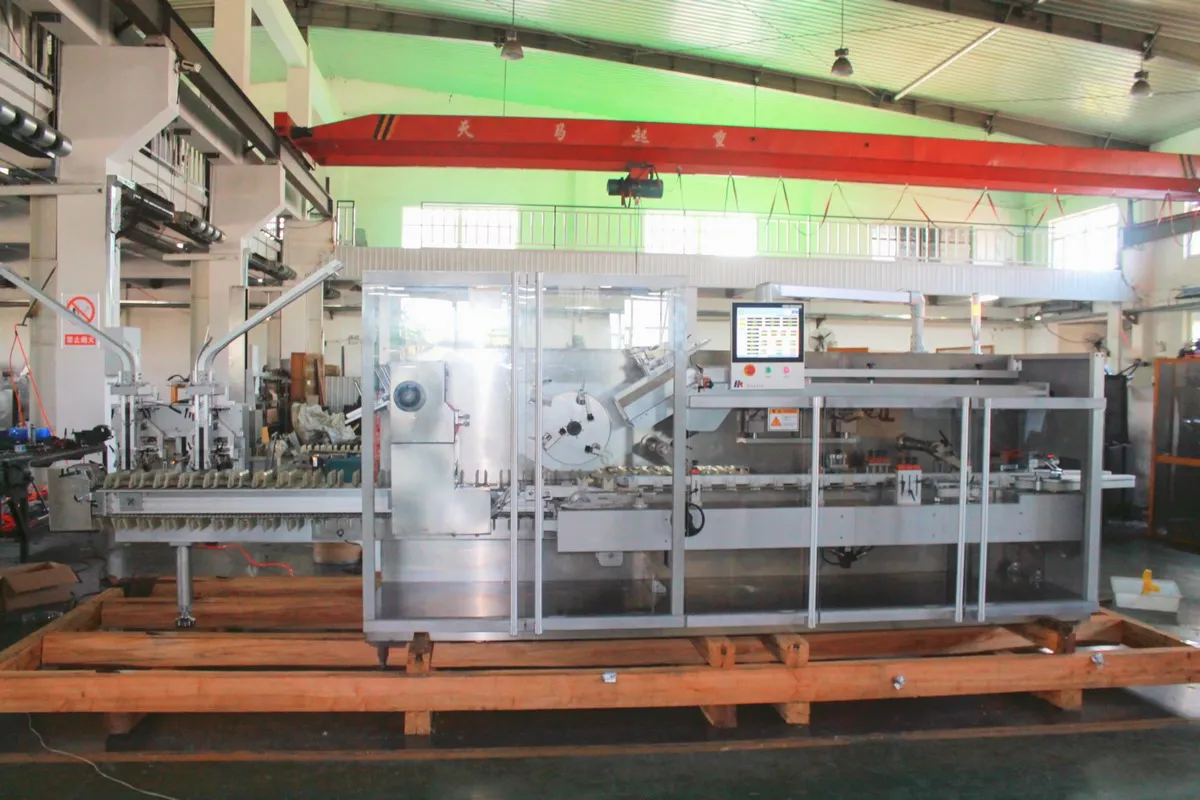

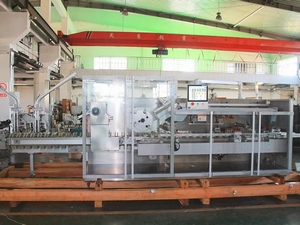

On-site operation of the Zhuhai Jinhong CM300 continuous motion horizontal cartoner. Powered by an advanced servo drive system, the equipment runs stably and achieves cartoning speeds of up to 300 cartons per minute, delivering a smooth, efficient workflow with neat and standardized packaging.
